MP GO! Evolution

MP GO! Evolution

MP GO! Evolution: Technical features

TYPE OF LIFT

Gearless without machine room

EXCELS IN

Innovation, comfort and efficiency

CAPACITY

4 – 21 people

SPEED

1.0-1.6 – 2.5 m/s

NO. STOPS

32 (maximum)

TYPE OF TRAFFIC

Intense

MP GO! Evolution: Technical features

TYPE OF LIFT

Gearless without machine room

EXCELS IN

Innovation, comfort and efficiency

CAPACITY

4 – 21 people

SPEED

1.0-1.6 – 2.5 m/s

NO. STOPS

32 (maximum)

TYPE OF TRAFFIC

Intense

MP GO! Evolution is a lift constantly updated to maintain the highest level of technology and comfort, as well as energy efficiency. This is endorsed by level A CERTIFICATION in the VDI 4707 and ISO 25745-2 energy classification.

NEW CONSTRUCTION

Especially recommended for new buildings, its robustness and reliability make it particularly ideal for highly transited buildings, such as shopping centres and train stations. However, its high level of energy efficiency also makes it a great option for residential buildings.

ADAPTABILITY

Can be adapted to all kinds of shafts and customer requirements.

RRECOMMENDED FOR

Residential buildings

Hotels

Offices

Shopping centres

Transport and public buildings

Hospitals

High-rise buildings

Residential buildings

Offices

Transport and public buildings

High-rise buildings

Hotels

Shopping centres

Hospitals

Connectivity and reliability

MP GO! Evolution includes our smart controller, MP ecoGO, which allows the lift to be monitored in real time, ensures maximum reliability and extends its useful life.

It also comes with a device which controls the power supply to the lift, thus avoiding faults due to spikes in the grid and protecting the controller’s sensitive components.

Energy Efficiency and Environmental friendly

Level A certification in the VDI 4707 and ISO 25745-2* energy classification thanks to its LED car lighting, standby off of the controller and its low-consumption gearless technology. Up to 95% recyclability and recoverability according to LCA (Life Cycle Assessment) analysis.

*Class A certification according to ISO 25745-2, categories 1 and 2, with category 2 consumption of only 516 kWh/year. Measurements performed on a 630 kg lift, 6 stops, 1 m/s with standard fittings.

Automatic rescue system

An automatic rescue system is included as standard, meaning peace of mind for users. This involves a battery system which, in the case of power outages, ensures the lift is able to make its way to the nearest landing and open its doors.

Aesthetics and range

Aesthetic, functional and innovative custom solutions, designed with user comfort and versatility in mind.

More comfort and less waiting

This lift includes three control features (pre-opening of doors, pre-start and direct approach), meaning a smoother journey and cutting waiting times by up to 8”.

It offers maximum stopping accuracy thanks to a positioning system with millimetric precision.

The night mode allows sounds to be programmed and turned off at night.

We adapt to your space

MP GO! Evolution is a highly reliable model which can be adapted to tight shafts and reduced headroom and pits. It also allows the guide rail fixtures to be adjusted to the requirements of the shaft.

A connected lift

Includes connectivity equipment as standard, which allows the lift to be monitored in real time and informs maintenance personnel of any issues. This system also allows personnel to connect to the car’s multimedia TFT display.

The built-in GSM module means the building does not need an analogue telephone line.

A connected lift

Includes connectivity equipment as standard, which allows the lift to be monitored in real time and informs maintenance personnel of any issues. This system also allows personnel to connect to the car’s multimedia TFT display.

The built-in GSM module means the building does not need an analogue telephone line.

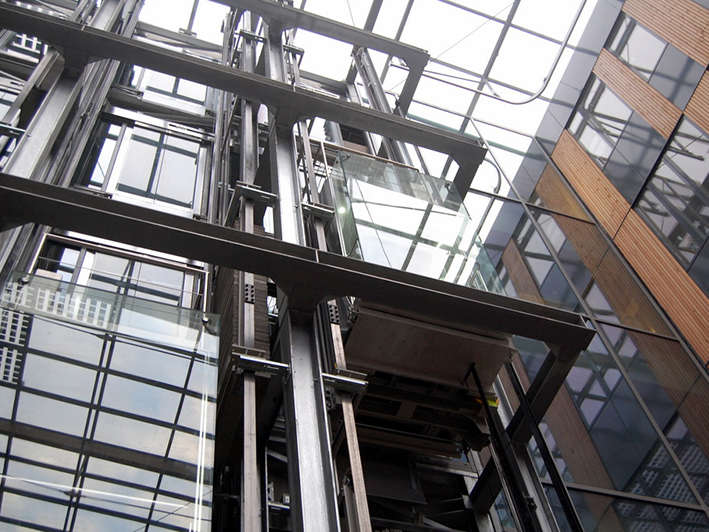

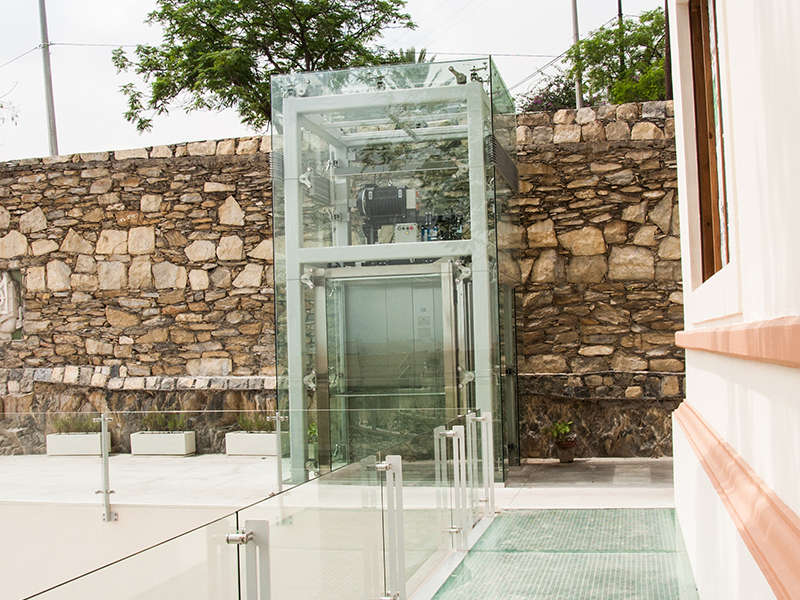

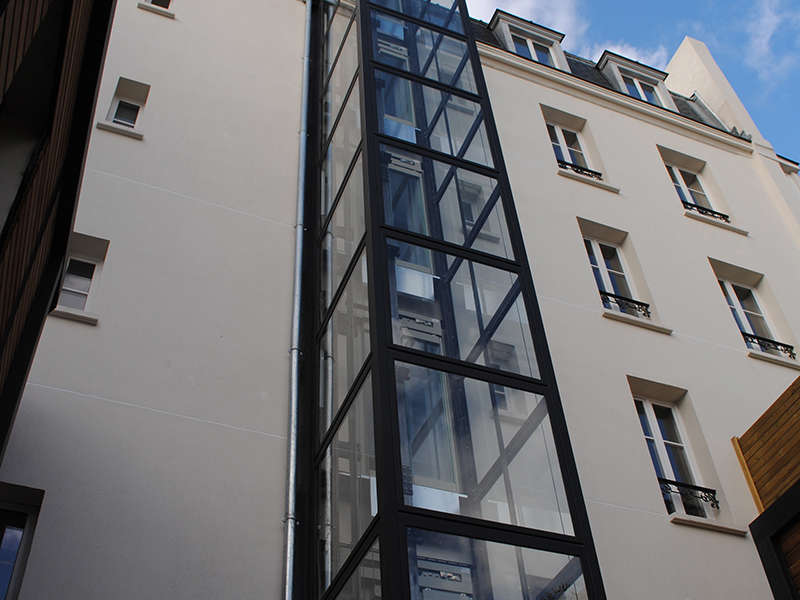

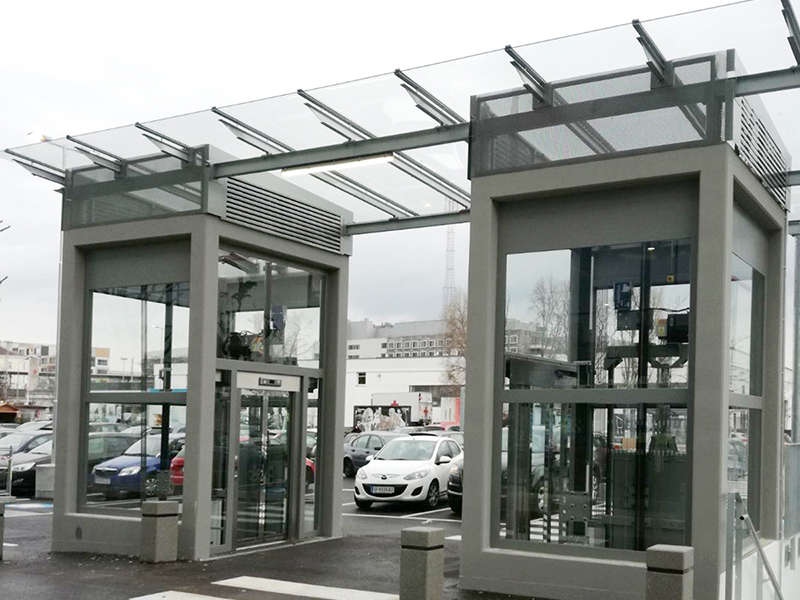

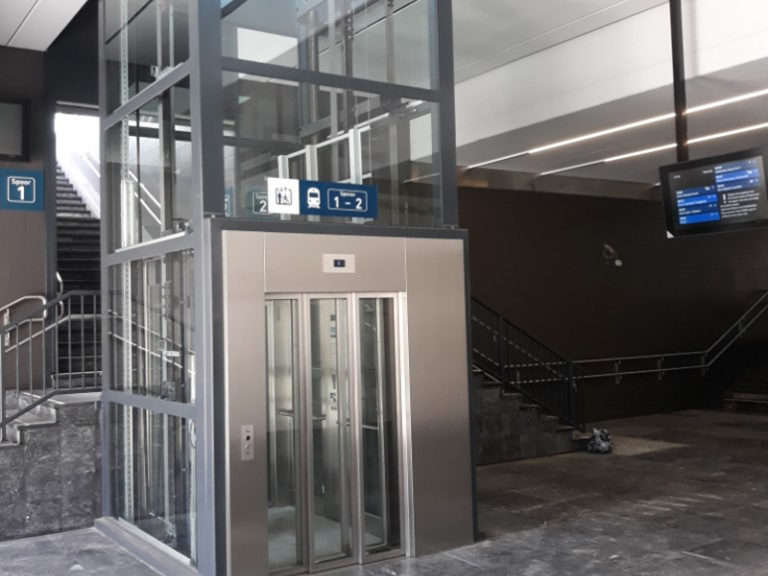

Descubre MP GO! Evolution in photos

Here are our technical documents

DRAWINGS AND DIMENSIONS

EN 81-20/50
EN 81-1/2

DRAWINGS AND DIMENSIONS

EN 81-20/50
EN 81-1/2

Do you have a question about something you’ve seen in our documents?

JUST LET US KNOW AND WE’LL GET RIGHT BACK TO YOU

Do you have a question?


CAPTCHA image

This helps us prevent spam, thank you.

Optional standards

EN 81-70

Accessibility to lifts for persons.

EN 81-71

Vandal resistant lifts.

EN 81-72

Firefighters lifts.

EN 81-73

Behaviour of lifts in the event of fire.

EN 81-21

Existing buildings.

EN 81-77

Lifts subject to seismic conditions.

EDE 14

Reduced headroom with escape hatch

FOR OTHER STANDARDS, PLEASE ASK
